Inter-Hemispheric. . .White Matter.Corpus Callosum

Overview

The bilateral inter-hemispheric white matter of the corpus callosum comprises the major commissural fiber tract connecting homologous and heterologous regions of the left and right cerebral hemispheres, enabling rapid integration of sensory, motor, and higher-order associative information across the midline. It is composed predominantly of myelinated axons organized topographically into subregions (e.g., rostrum, genu, body, isthmus, splenium), each preferentially interconnecting specific cortical territories such as prefrontal, motor, somatosensory, parietal, temporal, and occipital areas. This structure is essential for coordinated bimanual movements, bilateral sensory integration, language lateralization, and unified perceptual and cognitive function, and its disruption can lead to disconnection syndromes, altered interhemispheric transfer, and diverse neurocognitive and neuropsychiatric manifestations.
Corpus Callosum

The corpus callosum, the major inter-hemispheric white matter tract, shows robust heritability and has been repeatedly implicated in imaging–genetics and GWAS studies of brain structure and neuropsychiatric disorders. Common variants in genes related to axon guidance, myelination, and neurodevelopment (e.g., NRG1/ERBB signaling, CNTNAP2, ROBO/SLIT pathways, and OLIG/MBP-associated loci) have been associated with callosal size, fractional anisotropy, and microstructural integrity, as identified in large consortia such as ENIGMA and UK Biobank imaging GWAS. Structural differences or agenesis of the corpus callosum are linked to rare, often high-penetrance variants and copy number changes in genes such as L1CAM and others involved in midline development. Genetic risk for schizophrenia, bipolar disorder, autism spectrum disorder, attention-deficit/hyperactivity disorder, and major depression has been associated with altered callosal morphology or diffusion metrics, sometimes mediated by polygenic risk scores for these conditions, while GWAS of callosal measures also highlight loci overlapping with general cognitive ability, educational attainment, and neurodevelopmental traits, underscoring a shared genetic architecture between corpus callosum structure, connectivity, and higher-order cognitive and psychiatric phenotypes.

Overview generated by GPT-4o (2026).


Region ID: 509
Hemisphere: bilateral
Atlas: Talairach labels 1mm

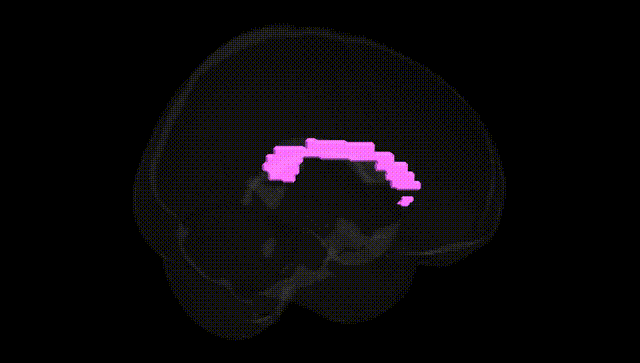

Inter-Hemispheric. . .White Matter.Corpus Callosum – Black Background (Full Brain)

Full Brain Black

Full Quality Version: Download MP4

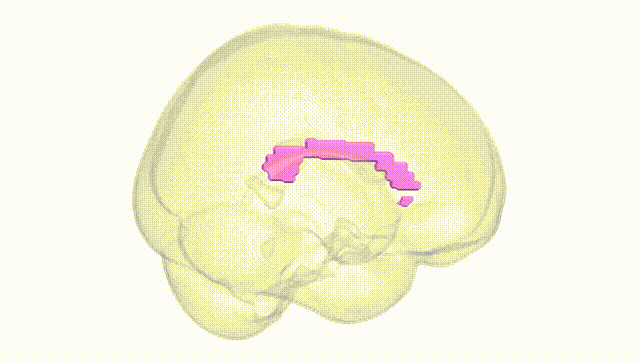

Inter-Hemispheric. . .White Matter.Corpus Callosum – White Background (Full Brain)

Full Brain White

Full Quality Version: Download MP4

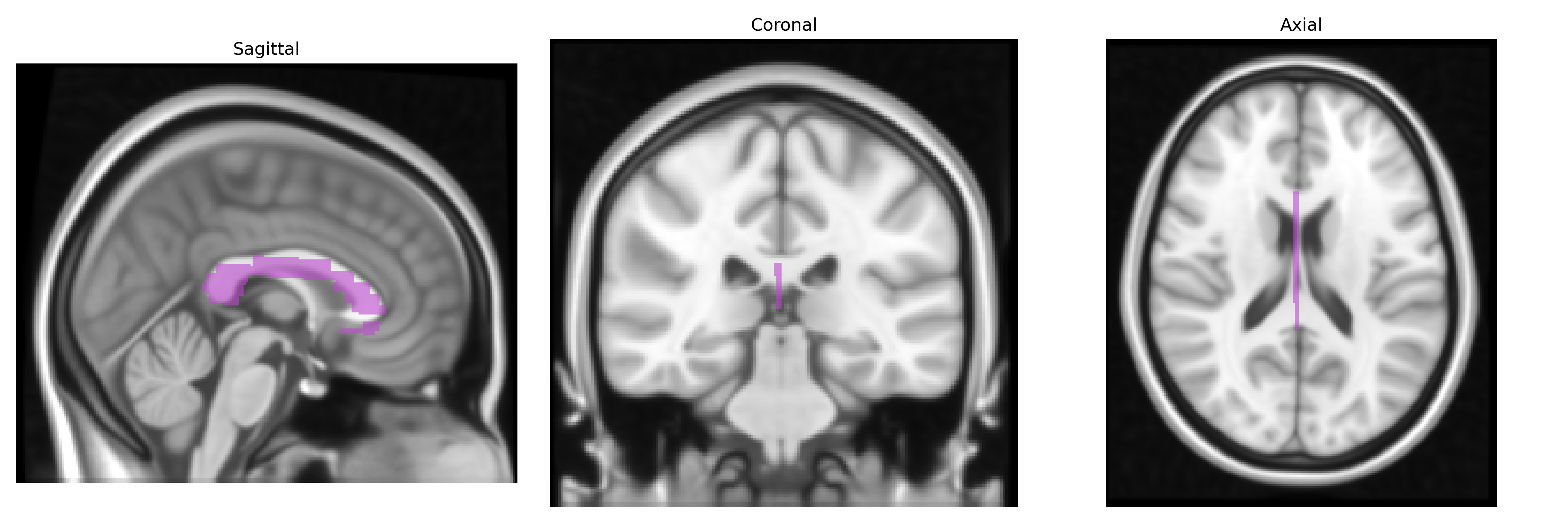

Triplanar View – T1 Background

Triplanar T1

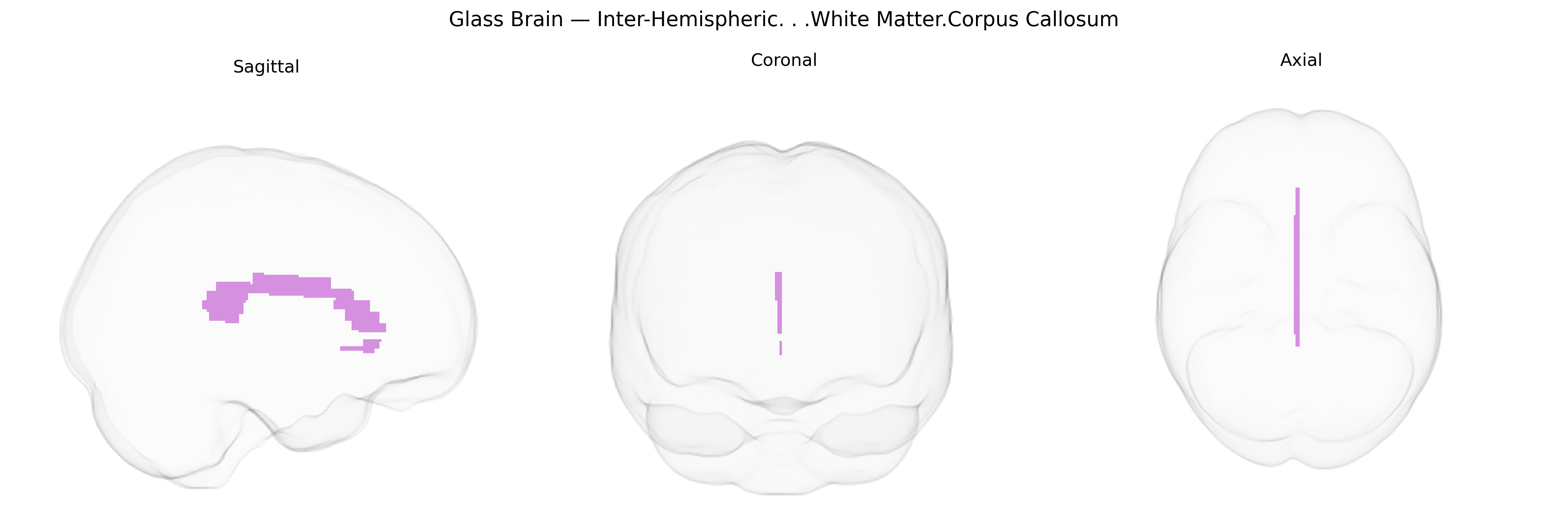

Triplanar View – Ghost Brain

Triplanar Ghost Brain


Citation

Wali Sidiqyar*, Gaurav Rudravaram*, Elyssa M. McMaster, Trent M. Schwartz, Adam M. Saunders, Kurt G. Schilling, Bennett A. Landman "Introducing SPINS: A Shared Public Visualization Library of Neuroanatomical Structures." Medical Imaging with Deep Learning- short paper

This resource is licensed under CC0 1.0 Universal (Public Domain).
