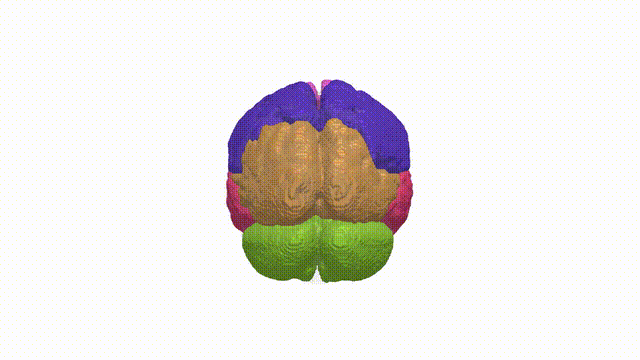

The MNI Structural maxprob thr25 1mm brain atlas is a probabilistic macro-anatomical parcellation of the human brain in MNI152 standard space that divides the cortex and subcortex into discrete regions based on structural (sulcal-gyral and gross anatomical) landmarks, assigning each voxel to the label with the highest probability while retaining only voxels with at least 25% likelihood of belonging to a given region (the “maxprob thr25” criterion). It was constructed by nonlinearly transforming multiple individual T1-weighted structural MRI scans to the MNI152 template, manually or semi-automatically segmenting key anatomical structures in each brain, and then aggregating these segmentations to produce probabilistic maps that capture inter-individual variability in regional boundaries at 1 mm isotropic resolution. This atlas is widely used for region-of-interest definition, anatomical labeling of functional activation clusters, structural and functional connectivity analyses, and as a reference framework for cross-study comparisons and meta-analyses in neuroimaging, providing a standardized anatomical scaffold for integrating multimodal brain data.
Overview generated by GPT-4o (2026).
Click any region name to view its full visualization and description.
| ID | Acronym | Region |
|---|---|---|
| 1 | Caudate | caudate_bilateral |
| 2 | Cerebellum | cerebellum_bilateral |
| 3 | Frontal Lobe | frontal lobe_bilateral |
| 4 | Insula | insula_bilateral |
| 5 | Occipital Lobe | occipital lobe_bilateral |
| 6 | Parietal Lobe | parietal lobe_bilateral |
| 7 | Putamen | putamen_bilateral |
| 8 | Temporal Lobe | temporal lobe_bilateral |
| 9 | Thalamus | thalamus_bilateral |
Wali Sidiqyar*, Gaurav Rudravaram*, Elyssa M. McMaster, Trent M. Schwartz, Adam M. Saunders, Kurt G. Schilling, Bennett A. Landman "Introducing SPINS: A Shared Public Visualization Library of Neuroanatomical Structures." Medical Imaging with Deep Learning- short paper
This resource is licensed under CC0 1.0 Universal (Public Domain).
