HarvardOxford cort maxprob thr25 2mm Atlas

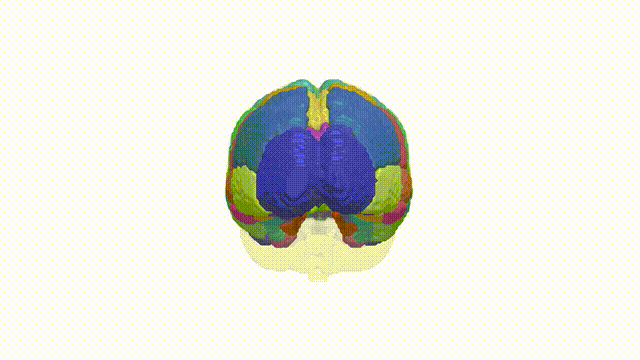

Rotating Brain

Full Quality Version: Download MP4

Overview

The HarvardOxford cortical maximum-probability threshold-25% 2 mm brain atlas is a probabilistic anatomical parcellation of the human cerebral cortex derived from structural MRI scans of healthy adult volunteers, created by manual expert labeling and voxel-wise probability mapping of cortical regions in standard MNI152 space and then converted into a discrete “maxprob” atlas by assigning each voxel to the cortical label with the highest probability, conditional on that probability exceeding a 25% threshold; it provides a set of macroscopic cortical regions (e.g., frontal, parietal, temporal, and occipital areas, including gyri- and sulci-based labels) sampled at 2 mm isotropic resolution. Biologically and neuroscientifically, it is used to define standardized cortical regions of interest in structural and functional neuroimaging, to support group-level analyses, lateralization studies, lesion mapping, and connectivity research, and to facilitate reproducible cross-study comparisons in fMRI, diffusion MRI, and lesion-symptom studies. Atlas Website

Overview generated by GPT-4o (2026).

Click any region name to view its full visualization and description.

ID Acronym Region
1 Frontal Pole frontal pole_bilateral
2 Insular Cortex insular cortex_bilateral
3 Superior Frontal Gyrus superior frontal gyrus_bilateral
4 Middle Frontal Gyrus middle frontal gyrus_bilateral
5 Inferior Frontal Gyrus, pars triangularis inferior frontal gyrus, pars triangularis_bilateral
6 Inferior Frontal Gyrus, pars opercularis inferior frontal gyrus, pars opercularis_bilateral
7 Precentral Gyrus precentral gyrus_bilateral
8 Temporal Pole temporal pole_bilateral
9 Superior Temporal Gyrus, anterior division superior temporal gyrus, anterior division_bilateral
10 Superior Temporal Gyrus, posterior division superior temporal gyrus, posterior division_bilateral
11 Middle Temporal Gyrus, anterior division middle temporal gyrus, anterior division_bilateral
12 Middle Temporal Gyrus, posterior division middle temporal gyrus, posterior division_bilateral
13 Middle Temporal Gyrus, temporooccipital part middle temporal gyrus, temporooccipital part_bilateral
14 Inferior Temporal Gyrus, anterior division inferior temporal gyrus, anterior division_bilateral
15 Inferior Temporal Gyrus, posterior division inferior temporal gyrus, posterior division_bilateral
16 Inferior Temporal Gyrus, temporooccipital part inferior temporal gyrus, temporooccipital part_bilateral
17 Postcentral Gyrus postcentral gyrus_bilateral
18 Superior Parietal Lobule superior parietal lobule_bilateral
19 Supramarginal Gyrus, anterior division supramarginal gyrus, anterior division_bilateral
20 Supramarginal Gyrus, posterior division supramarginal gyrus, posterior division_bilateral
21 Angular Gyrus angular gyrus_bilateral
22 Lateral Occipital Cortex, superior division lateral occipital cortex, superior division_bilateral
23 Lateral Occipital Cortex, inferior division lateral occipital cortex, inferior division_bilateral
24 Intracalcarine Cortex intracalcarine cortex_bilateral
25 Frontal Medial Cortex frontal medial cortex_bilateral
26 Juxtapositional Lobule Cortex (formerly Supplementary Motor Cortex) juxtapositional lobule cortex (formerly supplementary motor cortex)_bilateral
27 Subcallosal Cortex subcallosal cortex_bilateral
28 Paracingulate Gyrus paracingulate gyrus_bilateral
29 Cingulate Gyrus, anterior division cingulate gyrus, anterior division_bilateral
30 Cingulate Gyrus, posterior division cingulate gyrus, posterior division_bilateral
31 Precuneous Cortex precuneous cortex_bilateral
32 Cuneal Cortex cuneal cortex_bilateral
33 Frontal Orbital Cortex frontal orbital cortex_bilateral
34 Parahippocampal Gyrus, anterior division parahippocampal gyrus, anterior division_bilateral
35 Parahippocampal Gyrus, posterior division parahippocampal gyrus, posterior division_bilateral
36 Lingual Gyrus lingual gyrus_bilateral
37 Temporal Fusiform Cortex, anterior division temporal fusiform cortex, anterior division_bilateral
38 Temporal Fusiform Cortex, posterior division temporal fusiform cortex, posterior division_bilateral
39 Temporal Occipital Fusiform Cortex temporal occipital fusiform cortex_bilateral
40 Occipital Fusiform Gyrus occipital fusiform gyrus_bilateral
41 Frontal Operculum Cortex frontal operculum cortex_bilateral
42 Central Opercular Cortex central opercular cortex_bilateral
43 Parietal Operculum Cortex parietal operculum cortex_bilateral
44 Planum Polare planum polare_bilateral
45 Heschl’s Gyrus (includes H1 and H2) heschl’s gyrus (includes h1 and h2)_bilateral
46 Planum Temporale planum temporale_bilateral
47 Supracalcarine Cortex supracalcarine cortex_bilateral
48 Occipital Pole occipital pole_bilateral

Citation

Wali Sidiqyar*, Gaurav Rudravaram*, Elyssa M. McMaster, Trent M. Schwartz, Adam M. Saunders, Kurt G. Schilling, Bennett A. Landman "Introducing SPINS: A Shared Public Visualization Library of Neuroanatomical Structures." Medical Imaging with Deep Learning- short paper

This resource is licensed under CC0 1.0 Universal (Public Domain).
